Highly scalable in both hardware and software functionality, an ABB CM30 can be specified easily to meet the needs of virtually any process control application – simple or advanced.

Powerful control functions such as adaptive control, math, logic and totalisation provide problem-solving flexibility and make the ABB CM30 suitable for a wide range of process applications.

Fully configurable via the easy-to-navigate front panel menus or PC configuration software, the ABB CM30 can be commissioned rapidly and then tuned via the advanced autotune capability. MODBUS, PROFIBUS and Ethernet communication options ensure easy integration into a control system.

Using an ABB CM30 to Regulate pH in Water Systems

ABB CM30 Features

• Comprehensive display of process status
  • Crystal-clear, full-colour TFT display
  • User customisable
  • Historical trending

• Exceptionally easy to use
  • Intuitive user interface and clear text prompts make installation, commissioning and operation quick and simple

• PC Configuration
  • Time saving off-line software tool including report generation

• Profile control
  • Comprehensive setpoint profiling capabilities

• Powerful control functionality
  • Cascade, feed-forward, ratio, predictive and adaptive control strategies
  • Dual-loop capability

• Problem-solving capability
  • Flexible functionality including math and logic providing power to solve application requirements

• Built to survive
  • IP 66 and NEMA 4X environmental protection

ABB CM30 Powerful Operator Display

The ABB CM30 features a full-colour 9 cm (3.5 in.) display for displaying detailed process information to the user. Process details such as alarm messages and diagnostic information are displayed clearly in full text without the need for difficult to-read scrolling displays.

Example of an operator page
Automatic selection of standard display templates immediately makes best use of the CM30’s display.

Extensive customisation features then enable the displayed information to be tailored to suit the process requirements.

Diagnostics and alarm status display
The diagnostics and alarm status display provides detailed information on any active alarm or diagnostic condition. The operator can see, at-a-glance, the status of any alarm condition present within the process.

Additionally, diagnostic messages are presented clearly to the operator, enabling rapid notification and simple diagnosis of any critical instrument status condition. Historical information of diagnostic messages can also be viewed in the controller’s diagnostic log.

Trend display
Any two analogue values within the ABB CM30 can be plotted on the trend display to give a short-term process history.

This feature enables control efficiency to be monitored against setpoint and assists in tuning during commissioning.

Exceptionally easy to use
The CM30’s full text display and simple-to-navigate, pop-up menu makes operation exceptionally easy.

A programmable soft key enables commonly used functions, such as alarm acknowledgement and display selection, to be accessed easily by the operator.

ABB CM30 Flexible control functionality

The ABB CM30 features many advanced control functions providing the power to bring even the most complex process under control.

Autotune
Once initial configuration is complete, a powerful autotune facility enables automatic calculation of the PID values required, enabling rapid commissioning of the CM30.

Gain scheduling
The CM30’s gain scheduling functionality is used for efficient control of non-linear processes. Up to 3 different sets of PID parameters are selected automatically from a reference signal ensuring optimum control response, regardless of the process status.

Predictive control (dead-time compensation)
Control of processes with long dead-times, such as pH dosing in a pipeline, is addressed easily using pPI control. Configured via only 3 parameters (gain, integral time and dead-time), pPI control can also be combined with gain scheduling for optimum control efficiency.

Adaptive control
Adaptive control enables the CM30 to adjust its control response automatically to suit changing process dynamics. This makes the ABB CM30 particularly useful for processes with varying or uncontrolled types of load, by providing continuous tuning to maximize control efficiency.

The diagram (right) shows a product used in a manufacturing process that is stored in an outside tank. The use of adaptive control within the manufacturing process compensates automatically for the change in product temperature caused by seasonal variation.

Split output control
The CM30 can also be configured to perform split output control, for example, when both heating and cooling of a single process is required.

Remote auto / manual switching
In addition to switching via the front panel, the ABB CM30 can be switched between automatic and manual control mode using an external signal.

When switched to manual mode via a digital signal, the value of the control output can be preset, for example, to fully open a control valve automatically during a cleaning cycle.

External setpoint selection
The CM30’s control setpoint can be selected via external digital signals, for example, simplifying operation by selecting different setpoints using external push buttons.

Bank control
Bank control enables improved control of multi-element output devices such as banks of heaters, pumps and fans. Aimed at minimizing wear caused by over-use of one specific ‘duty’ device, bank control enables wear to be levelled by sharing duty and assist handling between every device in the bank.

Bank control gives users the choice of either ‘Rotate’ or ‘First In, First Out (FIFO)’ wear-levelling schedules. If required, bank control can be combined with PID control, assigning the PID output signal to the bank control function.

Bank control can also be utilized when split output control is configured. For example, when two variable speed pumps are being controlled in a duty assist configuration. Each time both pumps are stopped the duty and assist outputs are alternated.

ABB CM30 PDF Downloads

Download CM30 Datasheet PDF
Download CM30 Manual PDF

The post ABB CM30 Universal Process Controller 1/4 DIN appeared first on W H Good Group.

Highly scalable in both hardware and software functionality, an ABB CM50 can be easily specified to meet the needs of virtually any process control application – simple or advanced. Powerful control functions such as adaptive control, math, logic and totalisation provide problem-solving flexibility and make the ABB CM50 suitable for a wide range of process applications.

Fully configurable via the easy-to-navigate front panel menus or PC configuration software, the ABB CM50 can be commissioned rapidly and then tuned via the advanced autotune capability.

MODBUS, PROFIBUS and Ethernet communication options ensure easy integration into a control system.

ABB CM50 Features

• Comprehensive display of process status
  • Crystal-clear, full-colour TFT display
  • User customisable
  • Historical trending
• Exceptionally easy to use
  • Intuitive user interface and clear text prompts make installation, commissioning and operation quick and simple
• PC Configuration
  • Time saving off-line software tool including report generation
• Profile control
  • Comprehensive setpoint profiling capabilities
• Powerful control functionality
  • Cascade, feed-forward, ratio, predictive and adaptive control strategies
  • Dual-loop capability
• Problem-solving capability
  • Flexible functionality including math and logic providing power to solve application requirements
• Built to survive
  • IP 66 and NEMA 4X environmental protection

ABB CM50 Powerful Operator Display

The ABB CM50 features a full-colour 9 cm (3.5 in.) display for displaying detailed process information to the user. Process details such as alarm messages and diagnostic information are displayed clearly in full text without the need for difficult to-read scrolling displays.

Example of an operator page
Automatic selection of standard display templates immediately makes best use of the CM50’s display. Extensive customisation features then enable the displayed information to be tailored to suit the process requirements.

Diagnostics and alarm status display
The diagnostics and alarm status display provides detailed information on any active alarm or diagnostic condition. The operator can see, at-a-glance, the status of any alarm condition present within the process.

Additionally, diagnostic messages are presented clearly to the operator, enabling rapid notification and simple diagnosis of any critical instrument status condition.

Historical information of diagnostic messages can also be viewed in the controller’s diagnostic log.

Trend display
Any two analogue values within the ABB CM50 can be plotted on the trend display to give a short-term process history.

This feature enables control efficiency to be monitored against setpoint and assists in tuning during commissioning.

Exceptionally easy to use
The CM50’s full text display and simple-to-navigate, pop-up menus makes operation exceptionally easy.

A programmable soft key enables commonly used functions, such as alarm acknowledgement and display selection, to be accessed easily by the operator.

ABB CM50 Advanced control functionality

The ABB CM50 features many advanced control functions providing the power to bring even the most complex process under control.

Autotune
Once initial configuration is complete, a powerful autotune facility enables automatic calculation of the PID values required, enabling rapid commissioning of the CM50.

Gain scheduling
The CM50’s gain scheduling functionality is used for efficient control of non-linear processes.

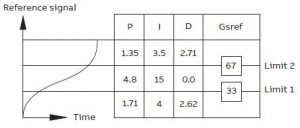

Up to 3 different sets of PID parameters are selected automatically from a reference signal ensuring optimum control response, regardless of the process status.

Predictive control (dead-time compensation)
Control of processes with long dead-times, such as pH dosing in a pipeline, is addressed easily using pPI control.

Configured via only 3 parameters (gain, integral time and dead-time), pPI control can also be combined with gain scheduling for optimum control efficiency.

Adaptive control
Adaptive control enables the ABB CM50 to adjust its control response automatically to suit changing process dynamics. This makes the ABB CM50 particularly useful for processes with varying or uncontrolled types of load, by providing continuous tuning to maximise control efficiency.

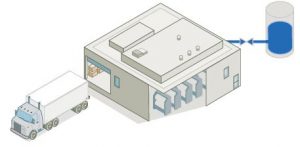

The diagram (right) shows a product used in a manufacturing process that is stored in an outside tank. The use of adaptive control within the manufacturing process compensates automatically for the change in product temperature caused by seasonal variation.

Split output control
The CM50 can also be configured to perform split output control, for example, when both heating and cooling of a single process is required.

Remote auto / manual switching
In addition to switching via the front panel, the CM50 can be switched between automatic and manual control mode using an external signal.

When switched to manual mode via a digital signal, the value of the control output can be preset, for example, to fully open a control valve automatically during a cleaning cycle.

External setpoint selection
The CM50’s control setpoint can be selected via external digital signals, for example, simplifying operation by selecting different setpoints using external push buttons.

Bank control
Bank control enables improved control of multi-element output devices such as banks of heaters, pumps and fans. Aimed at minimising wear caused by over-use of one specific ‘duty’ device, bank control enables wear to be levelled by sharing duty and assist handling between every device in the bank.

Bank control gives users the choice of either ‘Rotate’ or ‘First In, First Out (FIFO)’ wear-levelling schedules. If required, bank control can be combined with PID control, assigning the PID output signal to the bank control function.

Bank control can also be utilised when split output control is configured. For example, when two variable speed pumps are being controlled in a duty assist configuration. Each time both pumps are stopped the duty and assist outputs are alternated.

ABB CM50 PDF Downloads

Download CM50 Datasheet PDF
Download CM50 Manual PDF

The post ABB CM50 Universal Process Controller 1/2 DIN appeared first on W H Good Group.

Scalable in both hardware and software functionality, an ABB CM10 can be easily specified to meet the needs of your application requirements.

Flexible control functionality including on / off, time proportioning, analogue PID, dual output control and math & logic make the ABB CM10 suitable for a wide range of process applications.

Fully configurable via the easy-to-navigate front panel menus or PC configuration software, the ABB CM10 can be commissioned rapidly and then tuned via the advanced autotune functionality.

MODBUS and Ethernet communication options ensure easy integration into a control system.

ABB CM10 Features

• Comprehensive display of process status
  • Crystal-clear, full-colour TFT display
• Exceptionally easy to use
  • Intuitive user interface and clear text prompts make installation, commissioning and operation quick and simple
• PC Configuration
  • Time saving off-line software tool including report generation
• Profile control
  • Setpoint profiling function
• Flexible control functionality
  • On / Off, time proportioning, analogue PID and motorised valve control strategies
• Problem-solving capability
  • Flexible functionality including math and logic providing power to solve application requirements
• Built to survive
  • IP 66 and NEMA 4X environmental protection

ABB CM10 Powerful Operator Display

The CM10 features a full-colour 5.5 cm (2.2 in.) display for displaying detailed process information to the user. Process details such as alarm messages and diagnostic information are displayed clearly in full text without the need for difficult to-read scrolling displays.

Example of an operator page
Automatic selection of standard display templates immediately makes best use of the CM10’s display. Extensive customization features then enable the displayed information to be tailored to suit the process requirements.

Diagnostics and alarm status display
The diagnostics and alarm status display provides detailed information on any active alarm or diagnostic condition. The operator can see, at-a-glance, the status of any alarm condition present within the process.

Additionally, diagnostic messages are presented clearly to the operator, enabling rapid notification and simple diagnosis of any critical instrument status condition.

Historical information of diagnostic messages can also be viewed in the controller’s diagnostic log.

Exceptionally easy to use
The CM10’s full-text display and simple-to-navigate, pop-up menu makes operation exceptionally easy.

A programmable soft key enables commonly used functions, such as auto / manual selection, alarm acknowledgement and display selection, to be accessed easily by the operator.

ABB CM10 Flexible Control Functionality

The CM10 features flexible control functionality making it suitable for a wide range of applications. Features include:

Autotune
Once initial configuration is complete, a powerful autotune facility enables automatic calculation of the PID values required, enabling rapid commissioning of the CM10.

Gain scheduling
The CM10’s gain scheduling functionality is used for efficient control of non-linear processes.

Up to 3 different sets of PID parameters are selected automatically from a reference signal ensuring optimum control response, regardless of the process status.

Split output control
The CM10 can also be configured to perform split output control, for example, when both heating and cooling of a single process is required.

Remote auto / manual switching
In addition to switching via the front panel, the CM10 can be switched between automatic and manual control mode using an external signal. When switched to manual mode via a digital signal, the value of the control output can be preset, for example, to open a control valve automatically during a cleaning cycle.

External setpoint selection
The CM10’s control setpoint can be selected via external digital signals, for example, simplifying operation by selecting different setpoints using external push buttons.

ABB CM10 Problem Solving Flexibility

Extensive functionality is available to provide flexible problem-solving capability; making the CM10 much more than just a process controller.

Process alarms
8 independent process alarms can monitor any analogue signal within the CM10, enabling extensive process monitoring capability. Alarms can be used to drive physical outputs or soft-wired to other functions within the controller.

Real-time alarms
The ‘alarm clock’ functionality provided by the CM10’s real time alarms enables time-of-day decisions to be introduced into the controller’s actions or specific functions to be triggered routinely at specified times.

Delay timers
Event sequencing is enabled through the use of the CM10’s delay timers. A predetermined delay and output duration can be programmed into each delay timer and timers can be linked together.

Custom linearisers
The ABB CM10 has 2 independent 20-point custom linearizers that can be applied to any analogue signal within the controller. These linearisers can be used in applications such as level-to volume conversion of a non-linear tank level or to accommodate special input signals or output devices.

Math
8 math blocks provide arithmetic, averaging, min. / max. hold, square root and signal switching functionality. Simple equations can be performed in a single math block or multiple math blocks can be nested together to construct complex equations.

Signal switching ‘multiplexer’ math blocks switch between 2 analogue signals based on a trigger signal. For example, a backup sensor could be selected automatically on failure of a primary sensor.

Logic
8 comprehensive logic equations provide powerful interlock functionality. Inputs and outputs of the logic equations can be soft-wired to any digital signal within the controller to maximise flexibility.

Bank control
Bank control enables improved control of multi-element output devices such as banks of heaters, pumps and fans. Aimed at minimising wear caused by over-use of one specific ‘duty’ device, bank control enables wear to be levelled by sharing duty and assist handling between every device in the bank.

Bank control gives users the choice of either ‘Rotate’ or ‘First In, First Out (FIFO)’ wear-levelling schedules. If required, bank control can be combined with PID control, assigning the PID output signal to the bank control function.

Bank control can also be utilised when split output control is configured. For example, when two variable speed pumps are being controlled in a duty assist configuration. Each time both pumps are stopped the duty and assist outputs are alternated.

ABB CM10 Communications

Extensive communication options enable the ABB CM10 to be integrated into larger control systems easily or connected to other process instrumentation.

RS 485 MODBUS
Using RS 485 MODBUS, values and status can be communicated to and from the controller in real-time via an RS 485 connection.

Ethernet
Optional Ethernet communications enable ControlMaster to be integrated in to an Ethernet network quickly. The following functionality is provided:

• Email
  • Notification of a critical process event or status can be made by email. Multiple events can trigger an email that can be sent to multiple recipients
• Webserver
  • ControlMaster’s integrated webserver enables the current status of the process and controller to be viewed remotely using a standard web browser
• MODBUS TCP
  • Process values and status can be communicated to and from the ABB CM10 in real-time using MODBUS TCP, enabling it to be integrated easily into larger control systems or connected to a data recorder.

ABB CM10 PC configuration

The ABB CM10 can be fully configured using ABB’s ConfigPilot software.

Available free of charge, ConfigPilot enables off-line creation and editing of configuration files.

Configurations are transferred to and from a controller via its standard IrDA port and a USB IrDA adapter.

ABB CM10 Setpoint Profile

Setpoint profile capability makes the ABB CM10 ideally suited to thermal processing applications where a specific temperature profile must be followed. A profile can be created quickly by programming up to 10 segments (for example, ramp, hold, wait or step). Process operators can then activate and monitor the program easily via dedicated profile operator displays and menus. An ABB CM10 can have a single profile of up to 10 segments.

Fast run mode
When activated fast run mode runs a profile at 8 times normal speed allowing complex or long duration programs to be tested prior to use.

Guaranteed ramp / soak
For processes where strict tolerances must be adhered to during a profile cycle, guaranteed ramp/soak can be applied to appropriate segments. A configurable hysteresis can be applied to a segment; if the process variable exceeds these limits the program is placed on hold until the process recovers. Once back within limits the profile can be configured to continue, or repeat, the current segment. Hysteresis limits can be above, below or above and below the setpoint value.

Sequencing and interlocks
When interlocks are required, wait segments can be placed in a program. On arriving at a wait segment the profile waits until a required condition is met (for example, digital input received) before continuing with the program.

Dedicated profile displays
To make day-to-day operation as easy as possible, profile control has dedicated display templates. A concise display detailing the program name, status and time remaining is shown to the operator. A more detailed program and segment status information is available on sub-pages.

ABB CM10 PDF Downloads

Download CM10 Datasheet PDF
Download CM10 Manual PDF

The post ABB CM10 Universal Process Controller 1/8 DIN appeared first on W H Good Group.

A crystal-clear, full-colour, TFT display shows operators exactly the information they need to know and provides operation and configuration menus in full text making the ABB CM15 intuitive to use and very quick to install and commission.

Available as a basic indication-only model, or enhanced through plug and play function keys and I/O modules, the ABB CM15 offers totalisation, level, math, logic, counter and alarm functions making it extremely flexible and able to solve many tricky application requirements. Modbus, Profibus and Ethernet communication options ensure easy integration and connectivity to supervisory or control systems.

ABB CM15 Features

• Comprehensive display of process status
  • Crystal-clear, full-colour TFT display
  • User customisable
• Exceptionally easy to use
  • Intuitive user interface and clear text prompts make installation, commissioning and operation quick and simple
• Comprehensive I/O
  • 2 universal inputs, 1 analogue output and 1 relay fitted as standard
• Frequency input
  • Direct, high accuracy connection to electromagnetic flowmeters
• Totalisation and counter functions
  • Calculation and display of flow total values
  • Pulse counting capability
• Problem-solving capability
  • Flexible functionality including math and logic providing power to solve application requirements
• Duty / Assist pump control
  • Control of up to 6 pumps

How to Setup a Totaliser on an ABB CM15

ABB CM15 Powerful Operator Display

The CM15 features a full-colour 5.5 cm (2.2 in.) display for displaying detailed process information to the user. Process details such as alarm messages and diagnostic information are displayed clearly in full text without the need for difficult to-read scrolling displays.

Example of an operator page
Automatic selection of standard display templates immediately makes best use of the CM15’s display.

Extensive customisation features then enable the displayed information to be tailored to suit the process requirements.

Diagnostics and alarm status display
The diagnostics and alarm status display provides detailed information on any active alarm or diagnostic condition. The operator can see, at-a-glance, the status of any alarm condition present within the process. Additionally, diagnostic messages are presented clearly to the operator, enabling rapid notification and simple diagnosis of any critical instrument status condition. Historical information of diagnostic messages can also be viewed in the indicator’s diagnostic log.

Exceptionally easy to use
The CM15’s full text display and simple-to-navigate, pop-up menu makes operation exceptionally easy.

A programmable soft key enables commonly used functions, such as alarm acknowledgement and display selection, to be accessed easily by the operator.

ABB CM15 Problem Solving Flexibility

Extensive functionality is available to provide flexible problem-solving capability; making the CM15 much more than just a process indicator.

Process alarms
8 independent process alarms can monitor any analogue signal within the CM15, enabling extensive process monitoring capability. Alarms can be used to drive physical outputs or soft-wired to other functions within the indicator.

Real-time alarms
The ‘alarm clock’ functionality provided by the CM15’s realtime alarms enables time-of-day decisions to be introduced into the indicator’s actions or specific functions to be triggered routinely at specified times.

Delay timers
Event sequencing is enabled through the use of the CM15’s delay timers. A predetermined delay and output duration can be programmed into each delay timer and timers can be linked together.

Custom linearisers
The CM15 has 2 independent 20-point custom linearizers that can be applied to any analogue signal within the indicator. These linearisers can be used in applications such as level-to volume conversion of a non-linear tank level or to accommodate special input signals or output devices.

Math
8 math blocks provide arithmetic, averaging, min. / max. hold, square root and signal switching functionality. Simple equations can be performed in a single math block or multiple math blocks can be nested together to construct complex equations. Signal switching ‘multiplexing’ math blocks switch between 2 analogue signals based on a trigger signal. For example, a backup sensor could be selected automatically on failure of a primary sensor.

Logic
8 comprehensive logic equations provide powerful interlock functionality. Inputs and outputs of the logic equations can be soft-wired to any digital signal within the indicator to maximize flexibility.

Totalisers
Two totalisers are available on the ABB CM15. The totalisers can configured to perform multiple functions:

• Integration against an analogue signal to totalise flow
• Counting digital pulses
• Totalisation of flow based on a frequency signal from an electromagnetic flow meter

Frequency input
For maximum accuracy the ABB CM15 can accept a frequency signal from an electromagnetic flow meter. The frequency signal can be totalised and displayed; an instantaneous flow rate can also be calculated and displayed on screen.

How to Setup an ABB CM15 Indicator as a Batch Controller

ABB CM15 Communications

Extensive communication options enable the CM15 to be integrated into larger control systems easily or connected to other process instrumentation.

RS 485 MODBUS
Using RS 485 MODBUS, values and status can be communicated to and from the indicator in real-time via an RS 485 connection.

Ethernet
Optional Ethernet communications enable ControlMaster to be integrated in to an Ethernet network quickly. The following functionality is provided:

• Email
  • Notification of a critical process event or status can be made by email. Multiple events can trigger an email that can be sent to multiple recipients
• Webserver
  • ControlMaster’s integrated webserver enables the current status of the process and indicator to be viewed remotely using a standard web browser
• MODBUS TCP
  • Process values and status can be communicated to and from the ABB CM15 in real-time using MODBUS TCP, enabling it to be integrated easily into larger control systems or connected to a data recorder.

ABB CM15 PC Configuration

The ABB CM15 can be fully configured using ABB’s ConfigPilot software.

Available free of charge, ConfigPilot enables off-line creation and editing of configuration files.

Configurations are transferred to and from a controller via its standard IrDA port and a USB IrDA adapter.

ABB CM15 Bank Control

Bank control enables improved control of multi-element output devices such as banks of heaters, pumps and fans.

Aimed at minimizing wear caused by over-use of one specific ‘duty’ device, bank control enables wear to be levelled by sharing duty and assist handling between every device in the bank.

Ideal for pump control applications in the water and waste water industry. Up to six pumps can be controlled each with independent on and off trip points.

The ABB CM15’s universal process input, complete with transmitter power supply, makes it suitable for connection to many kinds of standard level transmitters.

Bank control provides users the choice of either ‘Rotate’ or ‘First In, First Out (FIFO)’ wear-levelling schedules. Rotate cycles which pump is the first to switch on during a pumping event. FIFO ensures that the last pump to switch of is the last pump to be called again.

ABB CM15 PDF Downloads

Download CM15 Datasheet PDF
Download CM15 Manual PDF

The post ABB CM15 Universal Process Indicator 1/8 DIN appeared first on W H Good Group.

Highly scalable in both hardware and software functionality, a CMF310 can be specified easily to meet the needs of virtually any process control application – simple or advanced. Powerful control functions such as adaptive control, math, logic and totalisation provide problem-solving flexibility and make the CMF310 suitable for a wide range of process applications.

Fully configurable via the easy-to-navigate front panel menus or PC configuration software, the CMF310 can be commissioned rapidly and then tuned via the advanced autotune capability.

MODBUS and Ethernet communication options ensure easy integration into a control system.

The post ABB CMF310 Universal Field-mount Process Controller appeared first on W H Good Group.

A crystal-clear, full-colour, TFT display shows operators exactly the information they need to know and provides operation and configuration menus in full text making the CMF160 intuitive to use and very quick to install and commission.

Available as a basic indication-only model, or enhanced through plug and play function keys and I/O modules, the CMF160 offers totalisation, level, math, logic, counter and alarm functions making it extremely flexible and able to solve many demanding application requirements.

MODBUS and Ethernet communication options ensure easy integration and connectivity to supervisory or control systems.

The post ABB CMF160 Universal Field-mount Process Indicator appeared first on W H Good Group.

The ABB C50 Universal Controller is a simple “indicating switch” (low-cost on/off controller) suitable for a wide range of applications including OEMs, consumer foods, ovens, HVAC and utilities (backup).

The post ABB C50 1/16 DIN Universal Controller appeared first on W H Good Group.

This allows the controller to be used by a variety of personnel without compromising the functionality available.

Quick access to important product information is also facilitated with a front USB port.

The West Pro EC44 controller is well suited to challenging applications such as: plastics, extrusion and rubber, industrial ovens and furnaces, laboratory and test equipment, environmental chambers, boiler and steam processes, food and beverage, packaging.

West Pro EC44 Features

• 1/4 DIN format
• Single, two loop, cascade or ratio control
• Graphical / text display (red/green backlit LCD)
• Profiler 256 segments shared by up to 64 programs
• USB configuration and data access
• Modbus RS485 or Modbus TCP Ethernet
• Up to 5 PID sets
• Gain scheduling
• Datalogger with real time clock
• Standards CE, UL

Fast and easy front panel setup for both for simple and advanced control tasks

The West Pro EC44 simplifies user setup with a step by step wizard configuration saving working through several menus for initial setup. A Logical menu structure for intuitive navigation allows fast changes and updates to individual settings.

Configure controllers without connecting to a PC

Configuration files can be downloaded to a controller using a flash memory stick via the front USB port allowing for fast programming. Settings can also be read via the USB port to clone additional devices or configure a replacement. Datalog files can also be extracted locally via the USB for convenient access of process data.

Easy access user operation

The West Pro EC44 pages are formatted to show users important process information on a single page, minimising the steps to access data and settings. A colour change green/red LED backlight provides easily recognisable alarm indication to improve response times for corrective action.

Comprehensive control and much more

The West Pro EC44 includes many features to ensure good control performance on a wide range of applications. Single or dual loop capability in a single device, cascade, valve and ratio enhanced control with support features such as real time clock, timer, gain scheduling and profiler ensure Pro EC44 has the flexibility for a process system needs. In addition datalogging, trending, USB, Ethernet options add even more capability to an already powerful device.

Fast configuration via configuration interface

Direct access for programming is available via a top of controller connection port. The interface provides easy and fast access with Blue Control© software to configure the controller or drilldown into process issues with minimal disruption.

West Pro EC44 PDF Downloads

Download EC44 Datasheet PDF
Download EC44 Manual PDF

The post West Pro EC44 1/4th DIN Profiler/Controller appeared first on W H Good Group.

The LCD screen on the West ProVu 4 displays real-text messages, removing ambiguity that can be caused by mnemonic codes on LED displays used in many products. Information is displayed in a logical format to be easily understood, hence reducing the risk of errors. User screens are only displayed as each function is enabled, creating an optimised menu structure that is simpler to navigate. Access to specific settings and parameters can also be restricted by assigning them to password protected supervisor and configuration parameter access levels.

The process of configuring the West ProVu 4 is simplified as a setup wizard runs on first power-up. The user is guided step-by-step through the common parameter settings to quickly program the unit. These settings can be saved on a memory stick via the USB port and can be used for reconfiguration or to program other ProVU units. BlueControl software can be used for on and off-line configuration.

Flexible input and output option boards mean that the controller can be selected to precisely match an application. Universal process input (Thermocouple, PT100 & linear DC), digital inputs, remote setpointinputs, RS485 and Ethernet (Modbus TCP) comms and up to nine outputs (relay, SSR driver, triac, linear DC and 24V transmitter PSU) are all available .

The optional profiling function on the West ProVu 4 supports 255 segments for use in up to 64 profiles, segments supported are ramp, dwell, hold, loop, jump to profile. Profile control is possible from the controller, remote input or timed via the integral real time clock.

There is an increasing requirement to log process data for quality control purposes. The optional datalogging feature is a low cost method of recording historical data for exporting to a .CSV file.

The post West ProVu 4 1/4th DIN Profiler appeared first on W H Good Group.
